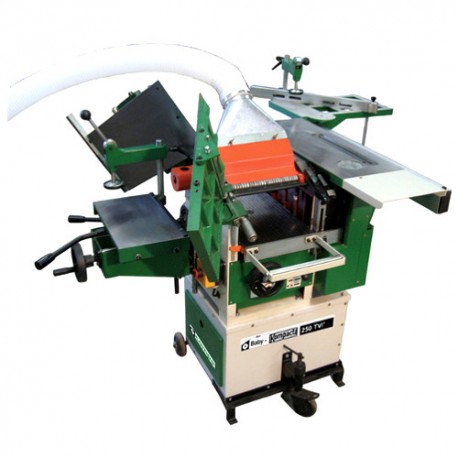

Planer Compa Baby Compacta 250 TV

Planer Compa Baby Compacta 250 TV

Surface Planer
Thickness Planer
Circular Saw
Moulder
Mortiser
Sliding Table

Technical data :
- Packaging size: 1130x800x620 mm
- Weight: 231 kg
SURFACE PLANER
- Working tables of cast iron: 250x960 mm
- D. Planer shaft: 72 mm
- Number of shaped knives: n° 3
- Size of shaped knives: 260x30x3 mm
- Shaped knives min height: 20 mm
- Rotation speed: 4000 g/min
- Max removal: 3 mm
- D. Aspirator connection: 100 mm
- Tilting planer fence: 0°-45°
- Motor: 2200W
THICKNESS PLANER
- Working tables of cast iron: 250x30 mm
- Max removal: 3 mm
- Feed speed: 6,5 mt/min
- Min working height: 6 mm
- Max working height: 130 mm
- D. Aspirator connection: 100 mm
- Motor: 2200W
CIRCULAR SAW
- D. Lama sega: 250x30 mm
- Rotation speed: 3500 g/min
- Max cutting height at 90°: 70 mm
- Max cutting height at 45°: -
- D. Aspirator connection: 100 mm
- D. Aspirator connection on the protection case: 40 mm
- Motor: 2200W
MOULDER
- D. Saw blade: 20(30) mm
- Rotaion speed: 8100 g/min
- Spindle useful: 40 mm
- D. tool max: 120 mm
- D. Aspirator connection: 100 mm
- Moulder saw working table of cast iron: 250x850 mm
- Motor: 1200W
MORTISER
- Working table: 360x120 mm
- Westcott type spindle: 1,5 - 16 mm
- D. Tool max: 16 mm
- Rotation speed: 4000 g/min
- Vertical, horizontal and transversal strokes: 70-120-90 mm
- Motor: 2200W
SLIDING TABLE
- Auxiliary table size: 490x300 mm
- Sliding table saw: 775 mm
