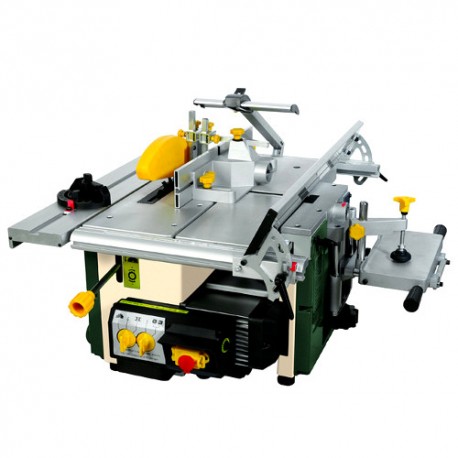

Planer Compa Compacta Mini Kompacta 150/6

Planer CompaCompacta Mini Kompacta 150/6

Surface Planer
Thickness Planer
Circular Saw
Mortiser
Milling Machine
Sliding Table

Technical data :
- Packaging size: 925x655x475 mm
- Weight: 47/44 kg
- Motor: 1000W
SURFACE PLANER
- Working table: 154x620 mm
- Max removal: 1,5 mm
- D. Planer shaft: 72 mm
- Knives: n° 2
- Shaft speed: 6000 g/min
THICKNESS PLANER
- Cutting width: 150 mm
- Max working height: 100 mm
- Max removal: 2 mm
- Feed speed: 7 mt/min
- N° of knife: 2
- Shaft speed: 4200 g/min
CIRCULAR SAW
- Working table: 620x325 mm
- D. Saw blade: 200 mm
- Max cutting height: 60 mm
- Rotation speed: 4200 g/min
MORTISER
- Bit housing: 13 mm
- Tool tang max: 6-8-10 mm
- Transversal stroke: 45 mm
- Side stroke: 95 mm
- Vertical stroke: 60 mm
- Working table: 260x125 mm
MILLING MACHINE
- Bit housing: 12 mm
- Tool tang max: 6-8 mm
- Vertical stroke: 42 mm
- Rotation speed: 9000 g/min
SLIDING TABLE
- Auxiliary table size: 120x740 mm
- Sliding table saw: 500 mm
