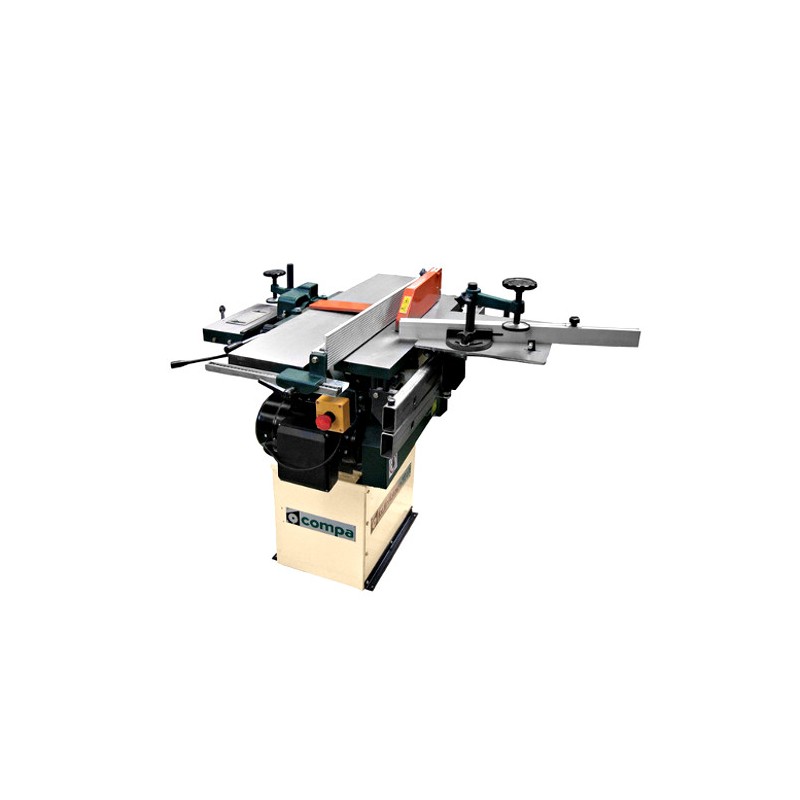

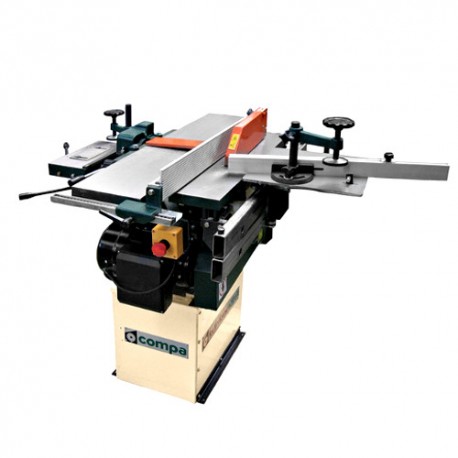

Combined Compa Baby Kompacta 200 L6

Combined Compa Baby Kompacta 200 L6

Surface planer
Thickness planer
Circular saw
Horizontal Spindle moulder
Mortiser
Sliding table

Tecnical data:
- Pakaging size: 1100x700x1000 mm
- Weight: 115 kg
SURFACE PLANER
- Working tables of cast iron: 200x850 mm
- D. Planer shaft: 72 mm
- Number of shaped knives: n.3
- Size of shaped knipes: 210x30x3 mm
- Shaped knives min. height: 20 mm
- Rotation speed: 3500 g/min
- Max. removal: 3 mm
- Tilting planer fence: 0° - 45°
- Motor:1500 W
THICKNESS PLANER
- Working tables of cast iron: 200x500
- Max. removal: 3 mm
- Feed speed: 6,5 mt/min
- Min. working height: 6 mm
- Max. working height: 90 mm
- Motor: 1500 W
CIRCULAR SAW
- D. Saw blade: 250x30 mm
- Rotation speed: 3500 g/min
- Max. cutting height 90°: 70 mm
- D. Aspirator connection: 80 mm
- D. Aspirator connection on the protection case: 40 mm
- Motor: 1,5 kW
TOUPIE'
- D. Tool-carrier spindle: 20 mm
- Rotation speed: 3500 g/min
- D. Tool max: 100 mm
- Moulder saw working table of cast iron: 70x470 mm
- Motor: 1,5 kW
CAVATRICE
- Working table: 280x160 mm
- D. Tool max: 6-8-12-15-16 mm
- Rotation speed: 3500 g/min
- Vertical,horizontal and transversal strokes: 90 - 90 - 90 mm
- Motor: 1,5 kW
SLIDING TABLE
- Auxiliary table size: 220x320 mm
- Sliding table saw: 480 mm
