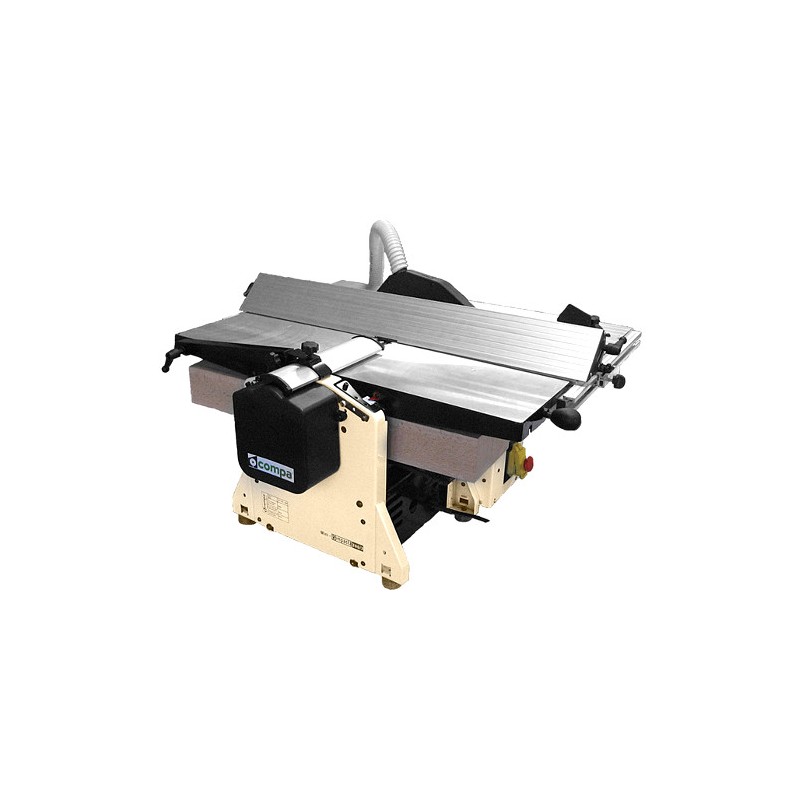

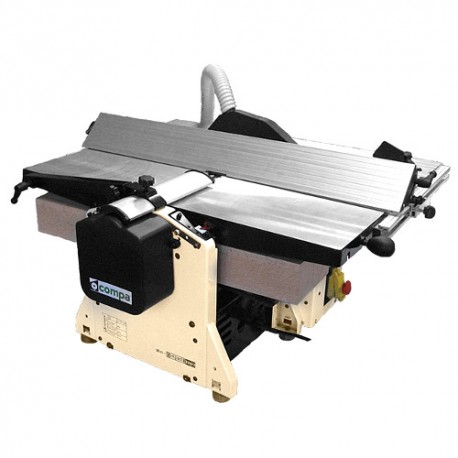

Combined Compa Mini Compakta 200/3

Combined Compa Mini Compakta 200/3

Surface Planer
Thickness Planer
Circular Saw

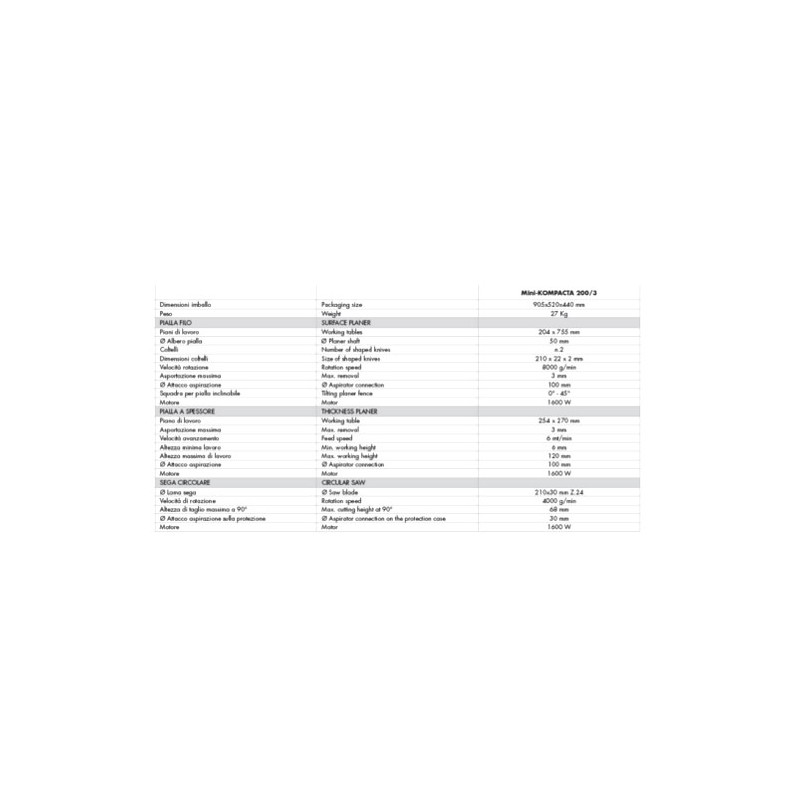

Technical Data
- Packaging size: 905x520x440 mm
- Weight: 27 kg
SURFACE PLANER
- Working tables: 204x755 mm
- D. Planer shaft: 50 mm
- Number of shaped knives: n° 2
- Size of shaped knives: 210x22x2 mm
- Rotation speed: 8000 g/min
- Max removal: 3 mm
- D. Aspirator connection: 100 mm
- Tilting planer fence: 0°-45°
- Motor: 1600W
THICKNESS PLANER
- Working table: 254x270 mm
- Max removal: 3 mm
- Feed speed: 6 mt/min
- Min working height: 6 mm
- Max working height: 120 mm
- D. Aspirator connection: 100 mm
- Motor: 1600W
CIRCULAR SAW
- D. Saw blade: 210x30 mm Z 24
- Rotation speed: 4000 g/min
- Max cutting height at 90°: 68 mm
- D. Aspirator connection on the protection case: 30 mm
- Motor: 1600W
