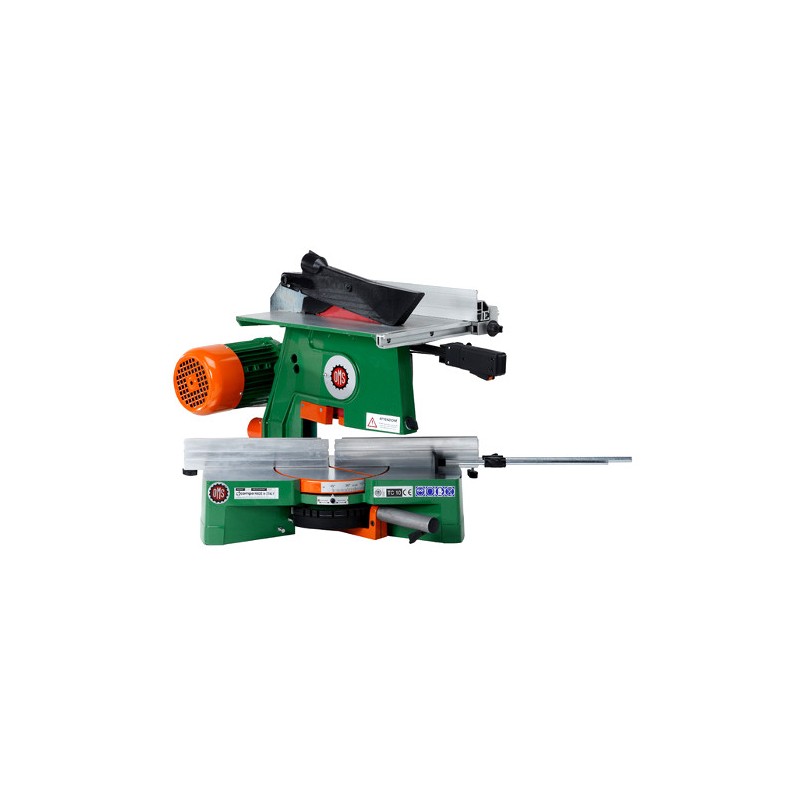

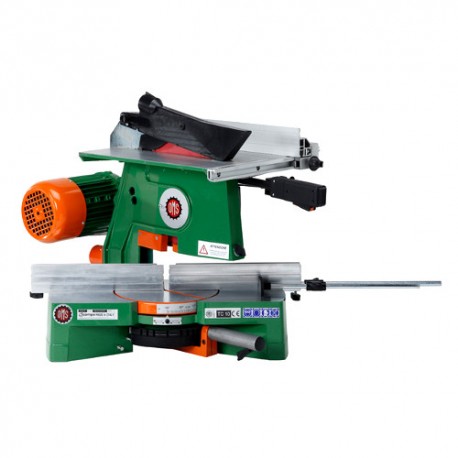

Portable Saws TC 14

Portable Saws TC 14

Induction motor with belt transmission
Motor with elettromagnetic brake

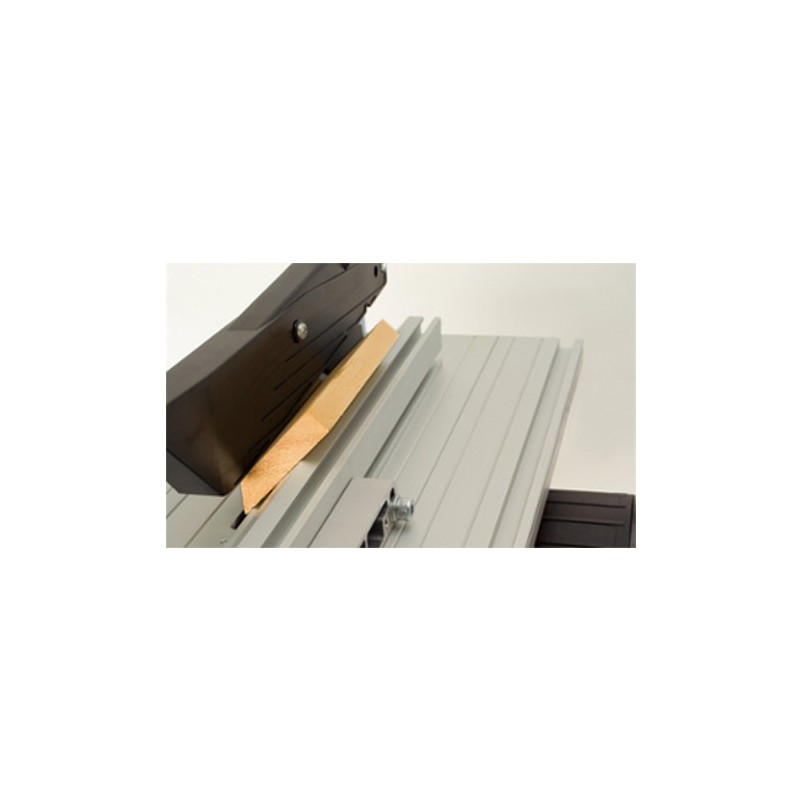

Upper table fench with 45° surface too
Cast iron angle locking plate

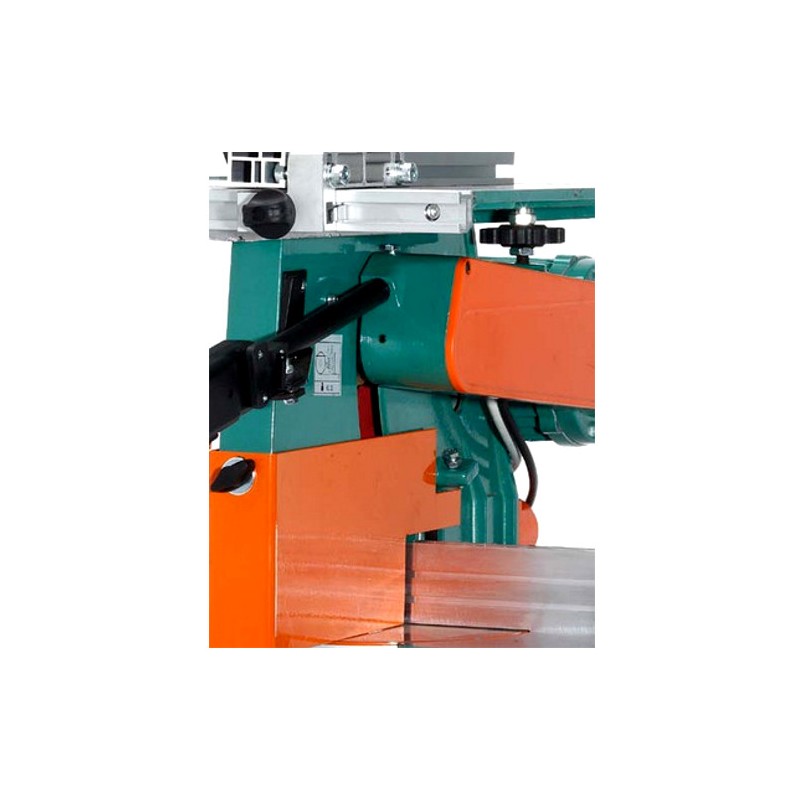

One hand quick angle locking system
Micrometric adjustable cutting height on top table

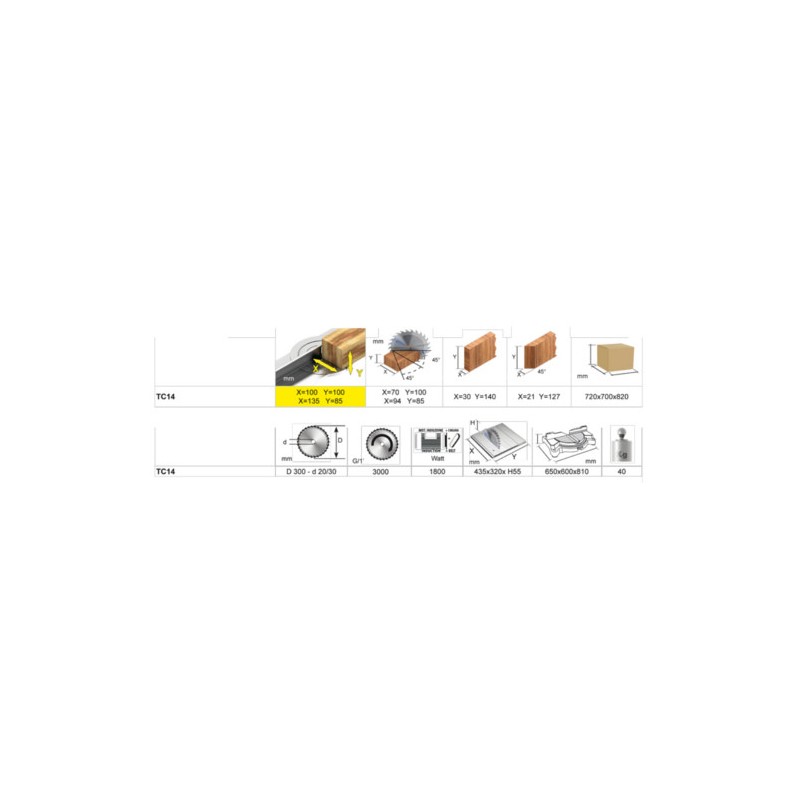

Technical Data:
- Power consumption: 1800 Watt
- Die-cast aluminum
- Max Cut: 100 mm X = - Y = 100 (Width x Length)
- Max Cut: 135 mm X = - Y = 80 (Width x Length)
- Max Cutting Angle: 70 mm X = - Y = 100 (45 ° x 45 °)
- Max Cutting Angle: 94 mm X = - Y = 85 (45 ° x 45 °)
- Max Vertical Cut Straight: mm x = 30 - Y = 140
- Max Cutting Vertical Slant: X = 21 mm - Y = 127
- Max Block Size: 720x700x820 mm
- Blade: 300 mm - 20/30 mm Z 72
- Number Revolutions for Minute: 3000
- Cod. TC14WZ72MONO - EAN 8032770660827
- Weight 40 Kg
