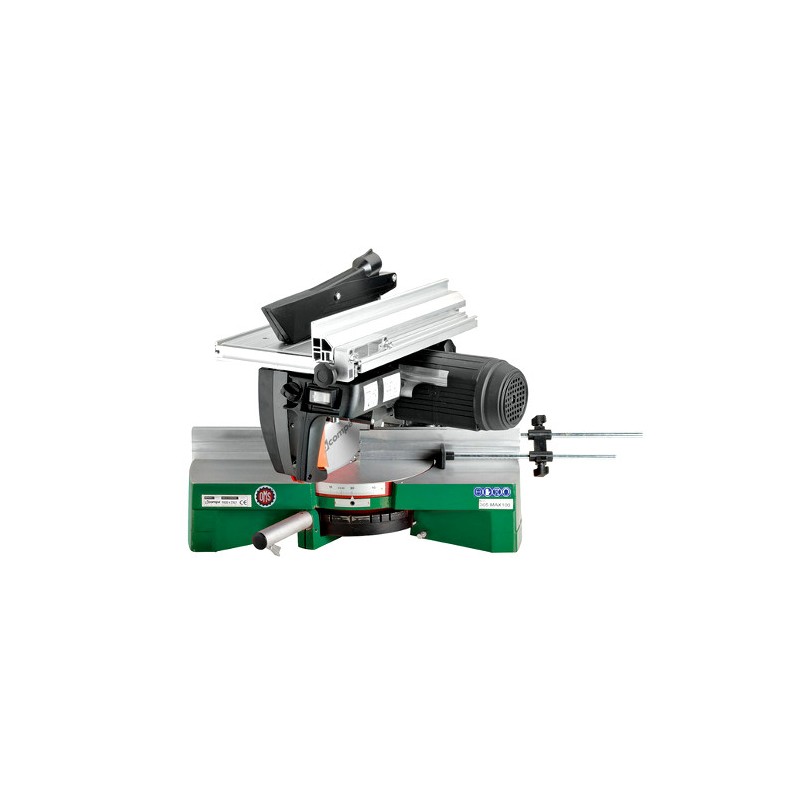

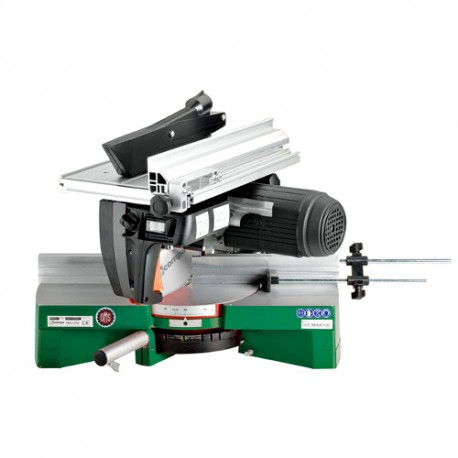

Portable Saws 305 MAX 100

Portable Saws 305 MAX 100

Double foil enforced upper work surface
Upper table fench with 45° surface too
Safety motor cover
One hand quick angle locking system
Cast iron angle locking plate

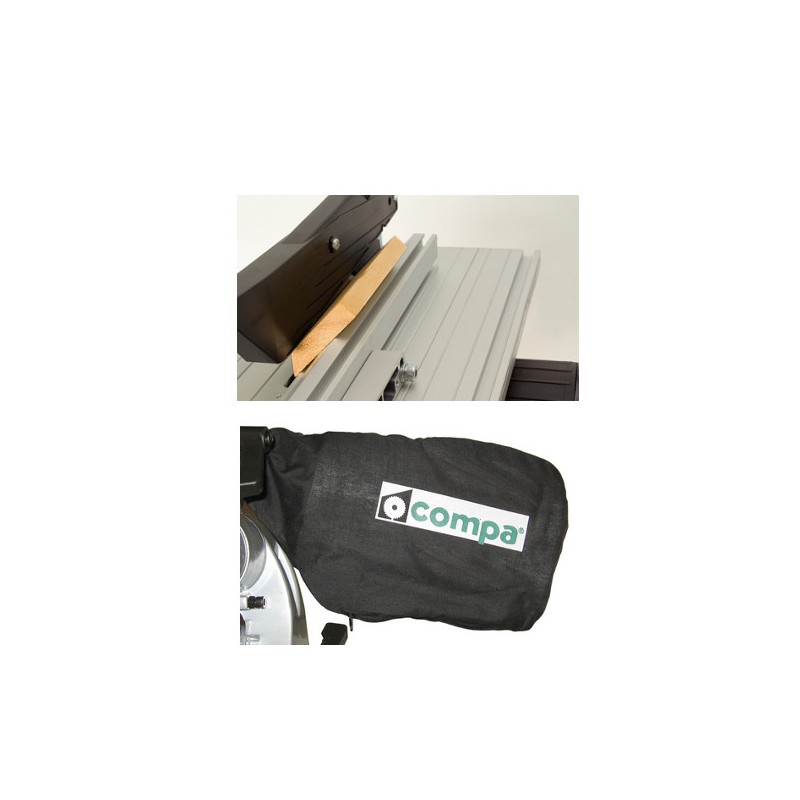

Sawdust collecting bag

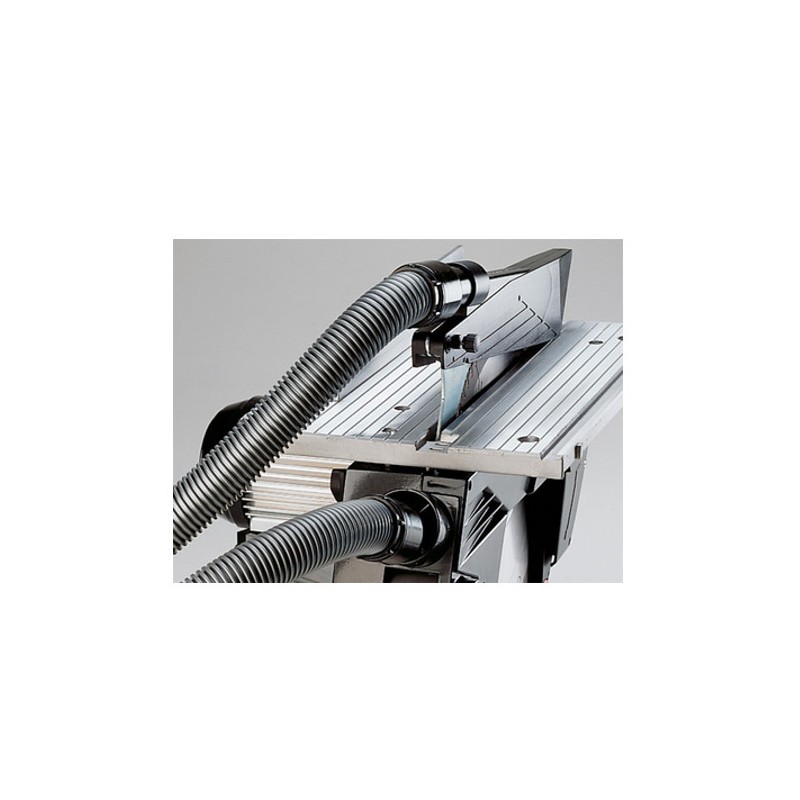

Double dust extraction chute

Technical Data:
- Power consumption: 1600 Watt
- Die-cast aluminum
- Max Cut: 135 mm X = - Y = 100 (Width x Length)
- Max Cutting Angle: 95 mm X = - Y = 100 (45 ° x 45 °)
- Max Vertical Cut Straight: mm x = 40 - Y = 130
- Max Cutting Vertical Slant: X = 30 mm - Y = 95
- Max Block Size: 720x820x700 mm
- Blade: 305 mm - 30 mm Z 72
- Work plan sizes : 285x400x50 mm
- Number Revolutions for Minute: 3000
- Cod. 305 MAX 100 - EAN 8032770660681
- Weight 32,5 Kg
