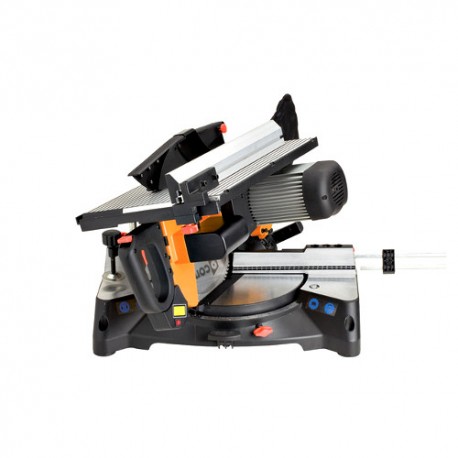

Mitre Saw Compa Orange 305-100

Mitre Saw Compa Orange 305-100

Induction motor with brake and adjustable belt.
Vertical clamp.
Automatic locking of cutting angle to:
90 ° - 45 ° - 30 ° - 22.5 ° - 15 °
Worktops aluminum rectified
Vertical motor.
Scale vertical tilt.
Sacco racogli sawdust.
Raising micrometer upstairs.

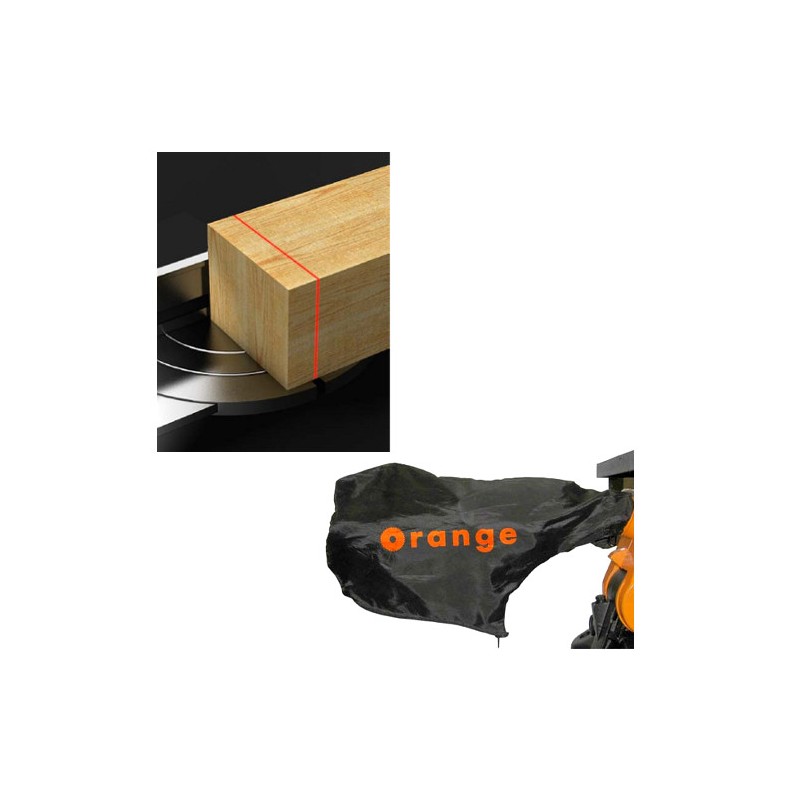

Laser.

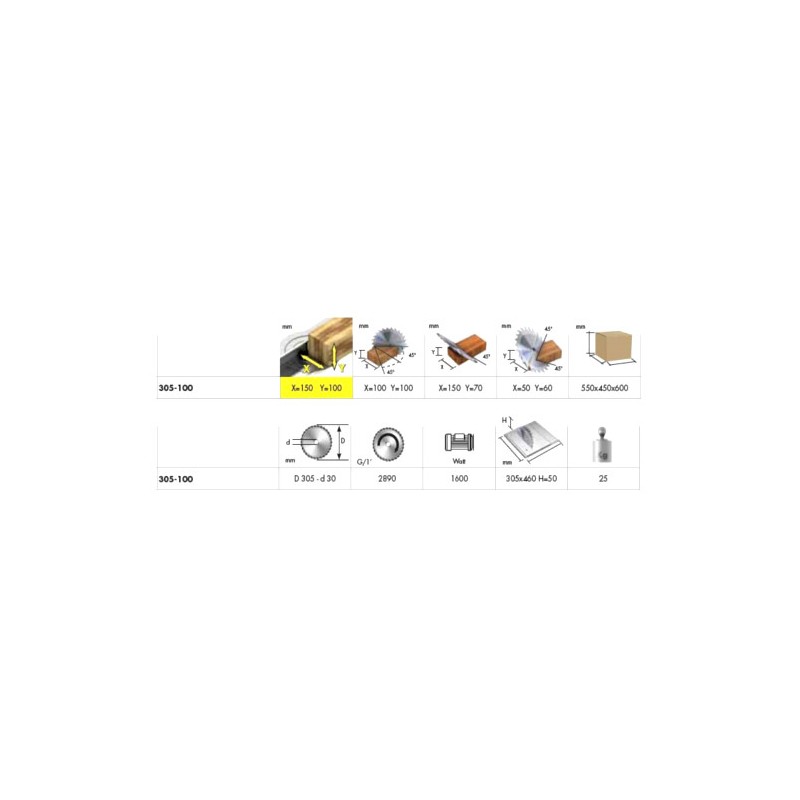

Technical Data:
- Power consumption: 1600 Watt
- Die-cast aluminum

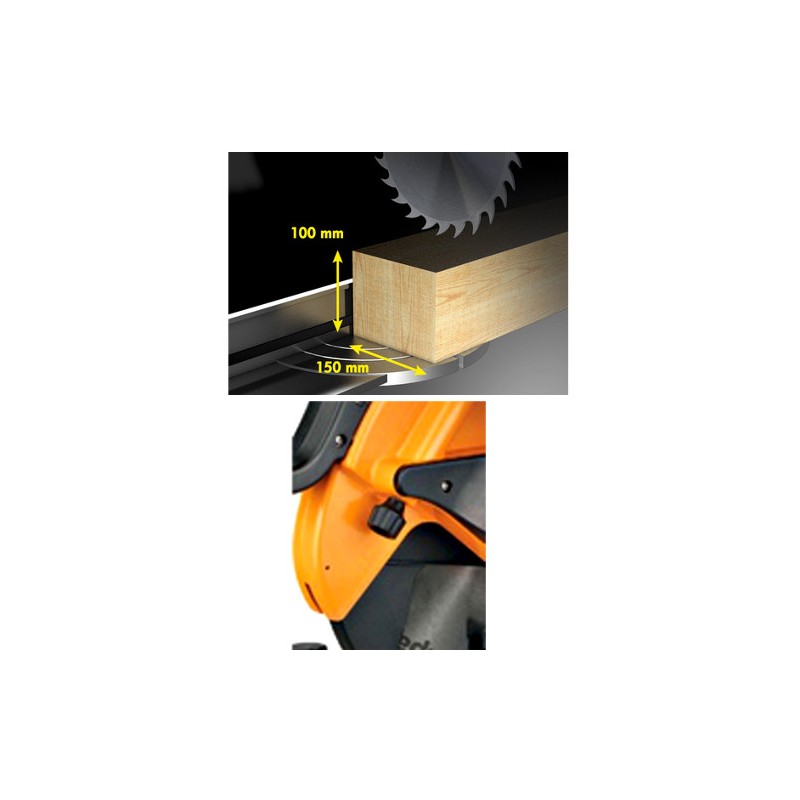

- Max Cut: 150 mm X = - Y = 100 (Width x Length)
- Max Cutting Angle: 100 mm X = - Y = 100 (45 ° x 45 °)
- Max Cutting Oblique: X = 150 mm - Y = 70 (45 °)
- Max Cutting Angle Oblique: X = 50 mm - Y = 60 (45 ° x 45°)
- Max Block Size: 550x600x450 mm
- Disc: 305 mm - 30 mm hole
- Number Revolutions per Minute: 2890
- Working top table sizes : 305x460x50 mm
- Cod. ORANGE305-100 - EAN 8032770661701
- Weight 25 Kg
