Mitre Saw Compa Blue 315 I

Mitre Saw Compa Blue 315 I

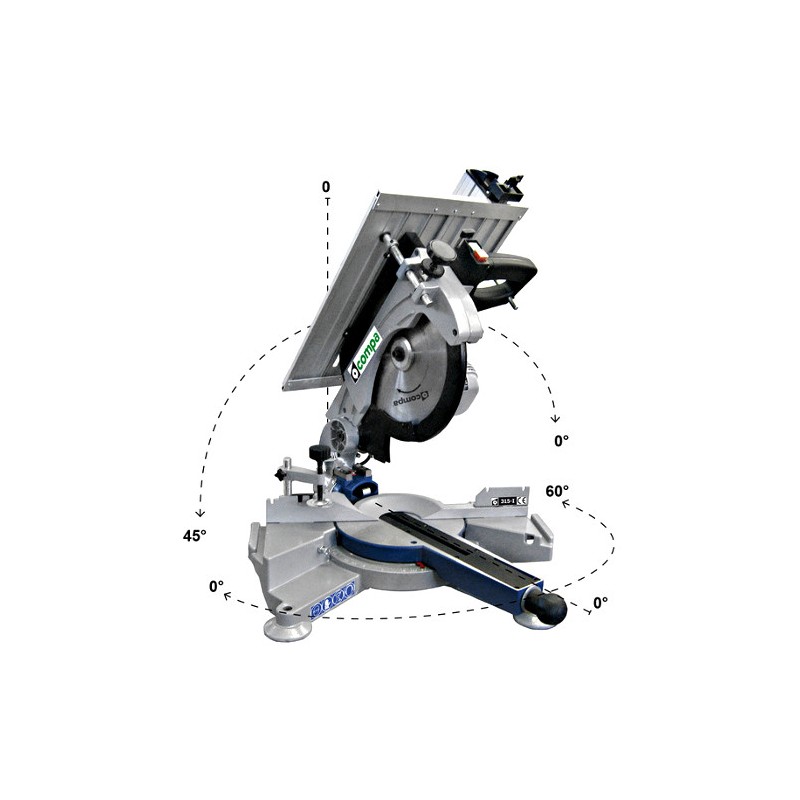

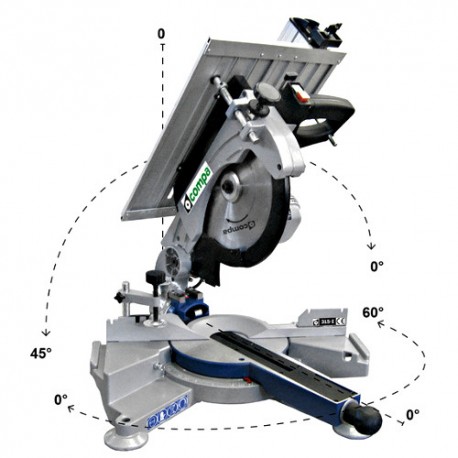

Adjustable angle system
Induction motor with belt drive trasmission system
Automatic locking of cutting angle at:
90°- 45°- 30°- 22,5° - 15°
Rettified working tables
Fench safety cover

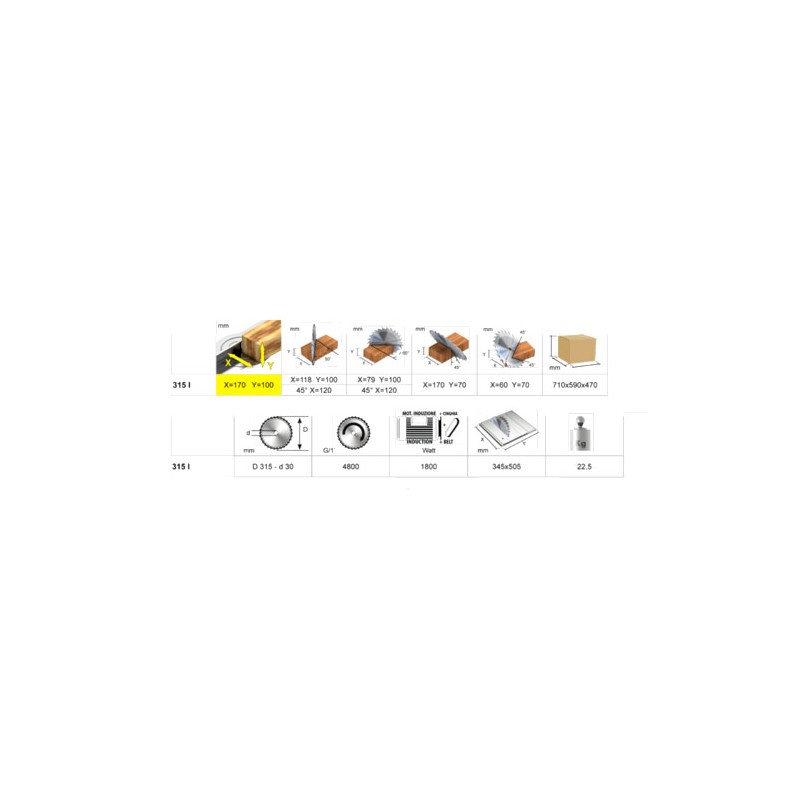

Technical Data:
- Power: 1800 Watt
- Die-cast aluminum
- Max Cut: 170mm X = - Y = 100 (Width x Length)
- Max Cutting Angle: 118 mm X = - Y = 100 (50°)
- Max Cutting Angle: 120 mm X  (45°)
- Max Cutting Angle: 79 mm X = - Y = 100 (45° x 45°)
- Max Cutting Angle: 120 mm X  (45°)
- Max Cutting Oblique: X = 170 mm - Y = 70 (45 °)
- Max Cutting Angle Oblique: X = 60 mm - Y = 70 (45 ° x 45 °)
- Max Block Size: 710x590x470 mm
- Disco: 315 mm - 30 mm hole
- Number Revolutions per Minute: 4800

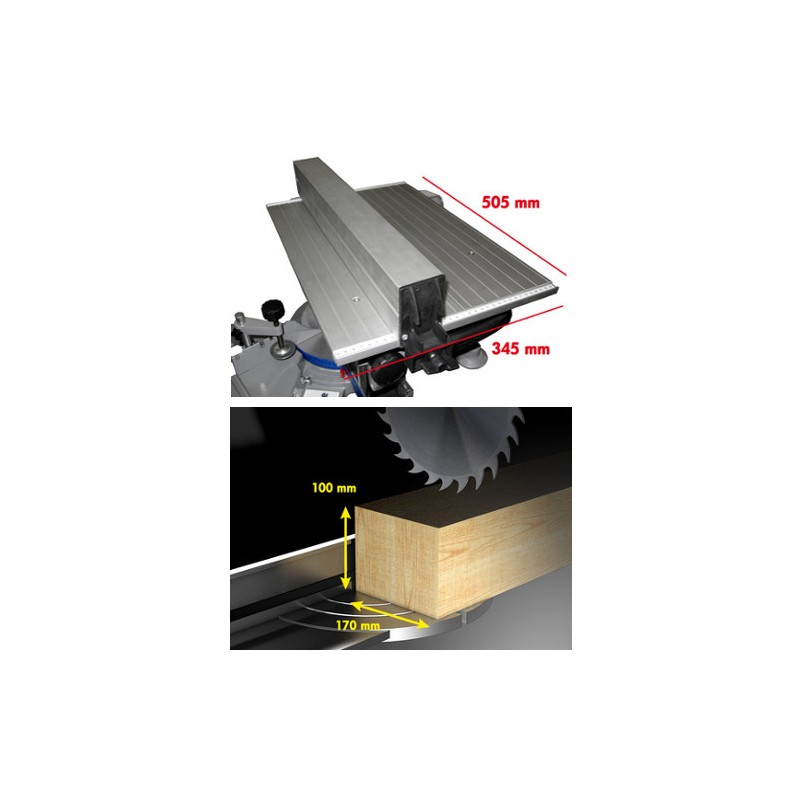

- Working top table sizes : 505x345x43 mm
- Cod. BLUE315-I - EAN 8032770663415
- Weight 22,5 Kg
