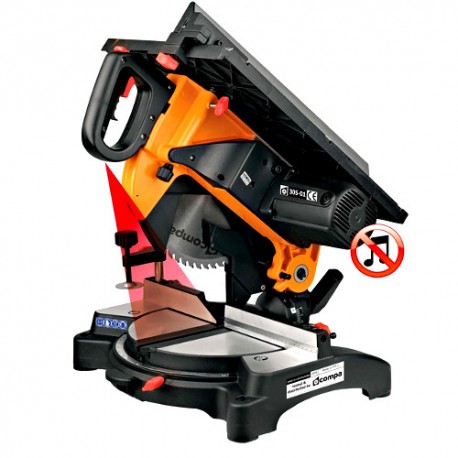

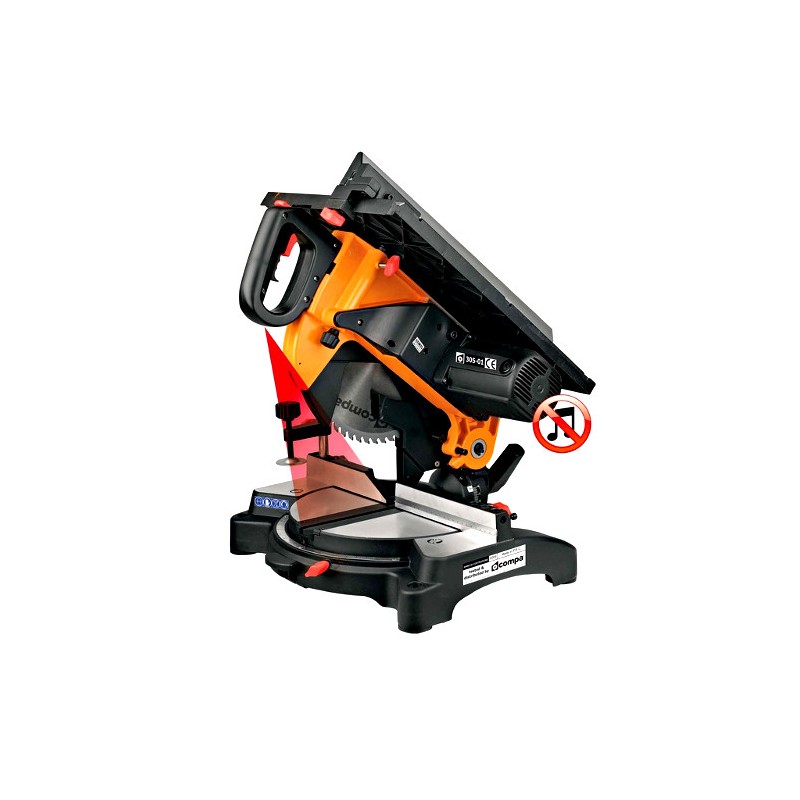

Mitre Saw Compa Orange 250

Mitre Saw Compa Orange 250

New work plan plus top
Corrected aluminum mm. 305x460
Silent motor with brushes
with belt drive.
Automatic locking professional angle
cutting: 90 ° - 45 ° - 30 ° - 22.5 ° - 15 °.
Worktops aluminum rectified.
Scale vertical tilt.
Central grip.

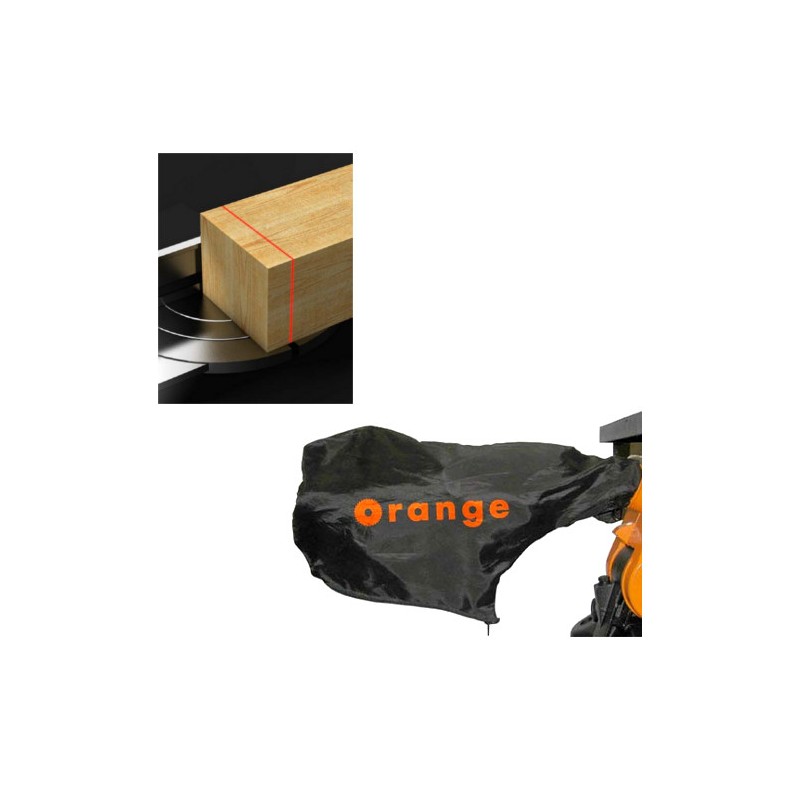

Sacco collect sawdust

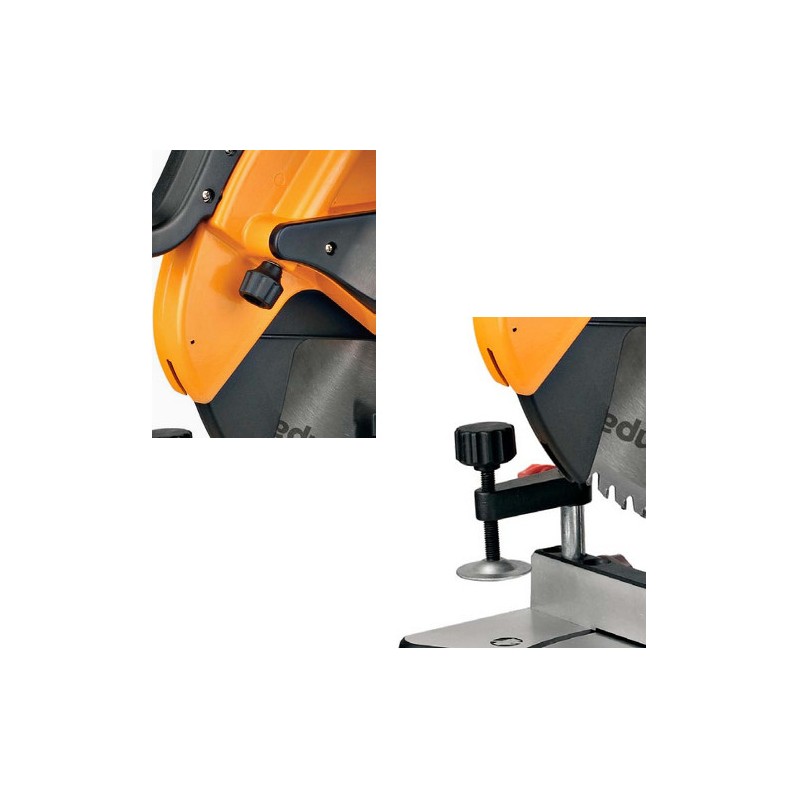

vertical clamp
Raising micrometer upstairs
Laser

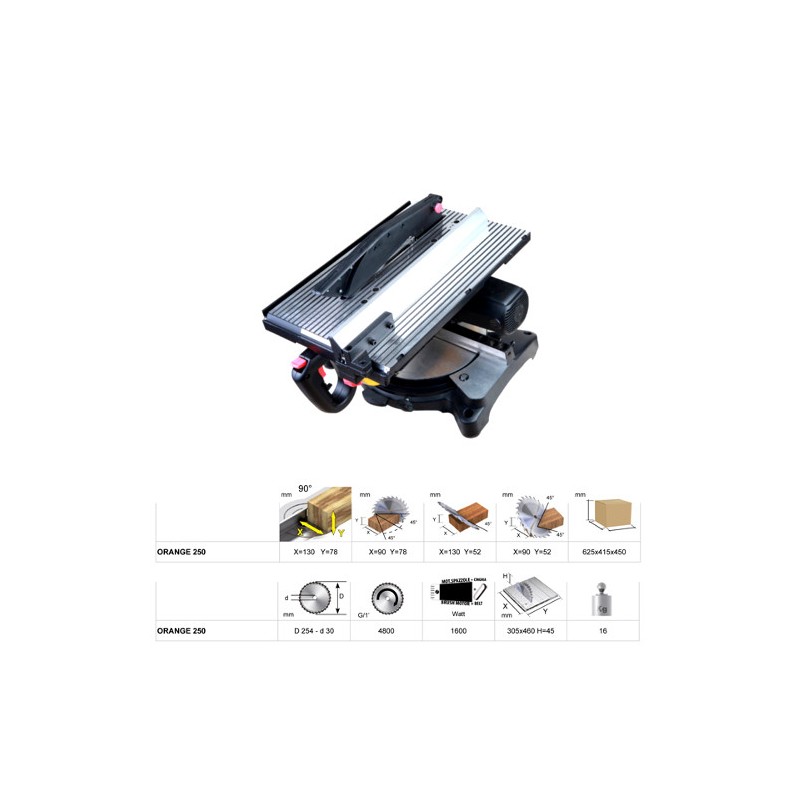

Technical Data:
- Power consumption: 1600 Watt
- Die-cast aluminum
- Max Cut: 130 mm X = - Y = 78 (Width x Length)
- Max Cutting Angle: 90 mm X = - Y = 78 (45 ° x 45 °)
- Max Cutting Oblique: X = 130 mm - Y = 52 (45 °)
- Max Cutting Angle Oblique: X = 60 mm - Y = 40 (45 ° x 45°)
- Max Block Size: 580x470x400 mm
- Disco: 254 mm - 30 mm hole
- Number Revolutions per Minute: 4800
- Working top table sizes : 305x460x45 mm
- Cod. ORANGE 250 - EAN: 8032770665617
- Weight 16 Kg
