Portable Saws 2301 XL MAXIMA

Portable Saws 2301 XL  MAXIMA

Central handle
Noiseless induction motor with brake system
Safety motor cover
Thrust bearings inserted at the points of friction and rotation
Tilting saw unit on the vertical axis up to 45°on the left hand side
Anti-slip and vibration-damping feet

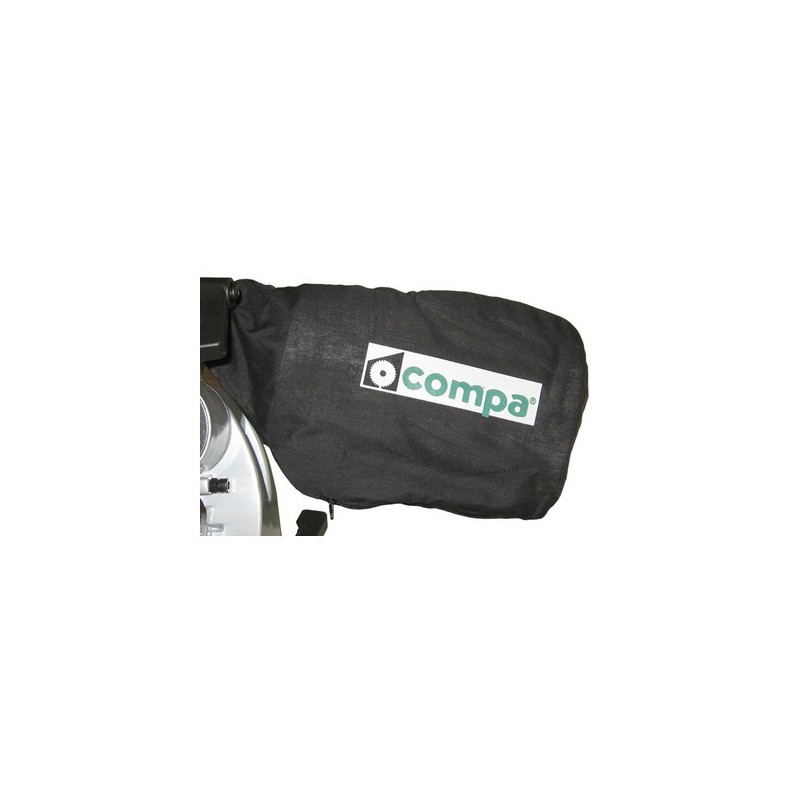

Sawdust collecting bag

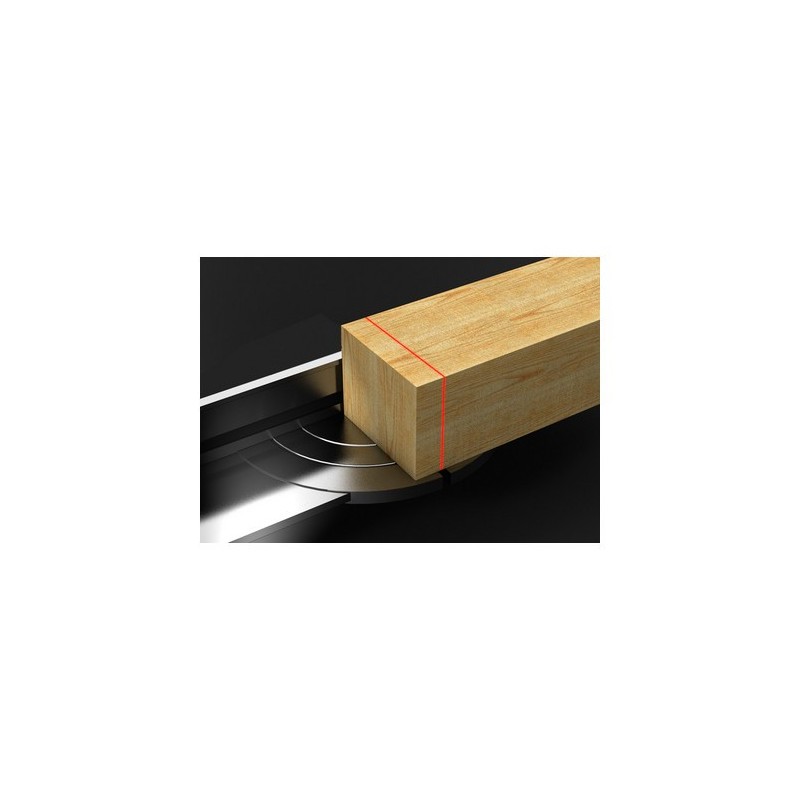

New adjustable laser cutting line guide
Offset motor and trasmission to the saw shaft through COG belt

Technical Data:
- Power consumption: 1600 Watt
- Die-cast aluminum

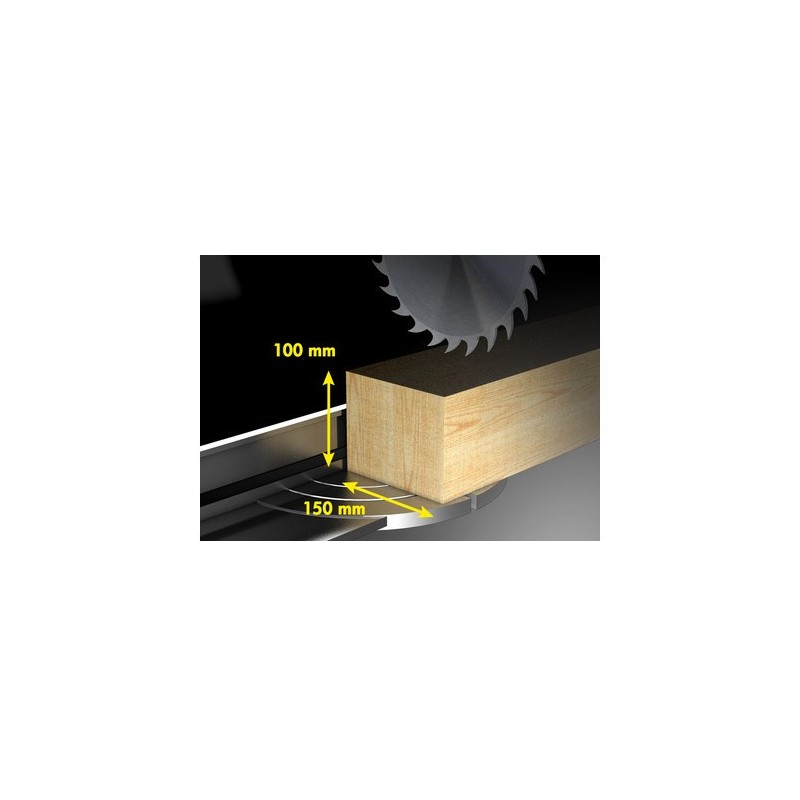

- Max Cut: 150 mm X = - Y = 100 (Width x Length)
- Max Cutting Angle: 105 mm X = - Y = 100 (45 ° x 45 °)
- Max Cutting Oblique: X = 150 mm - Y = 65 (45°)
- Max Vertical Cut Straight: mm x = 40 - Y = 130
- Max Cutting Vertical Slant: X = 30 mm - Y = 135
- Max Vertical Angle Oblique Cutting: mm x = 50 - Y = 65
- Max Block Size: 720x580x500 mm
- Blade: 300 mm - 30 mm Z 72
- Number Revolutions for Minute: 3000
- Cod. 2300 XL MAX - EAN 8032770660872
- Weight 23 Kg
