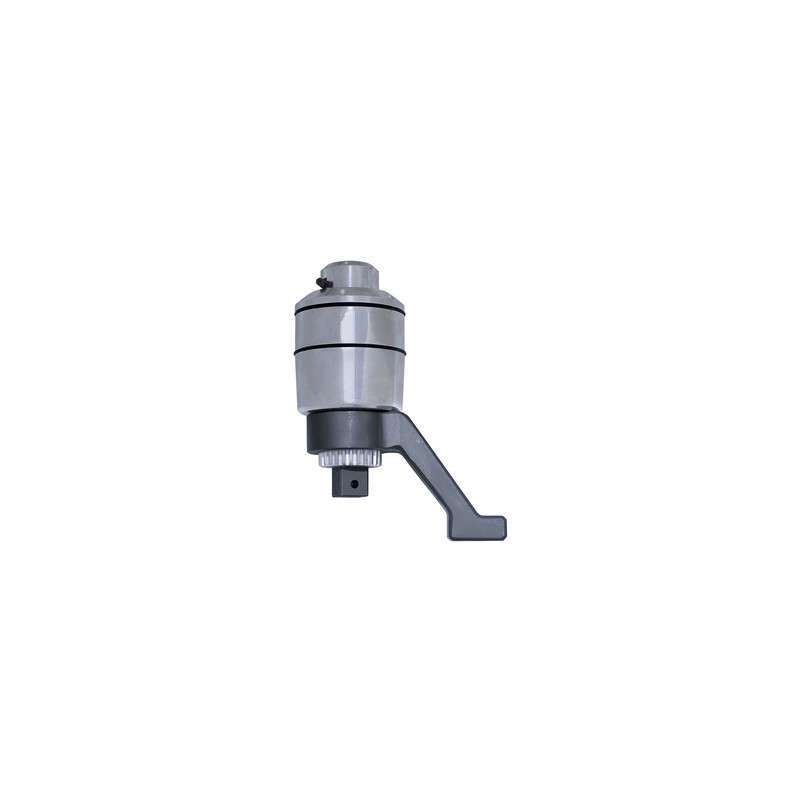

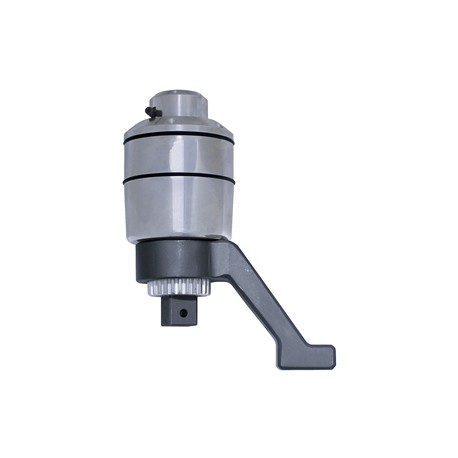

COUPLE MULTIPLIER 800 Nm View larger

COUPLE MULTIPLIER 800 Nm

A28650800

New

Tool that multiplies the value of tightening or loosening set on the torque wrench Useful to greatly reduce the effort of the operator and the - Sizes of lever It takes with the aid of a torque wrench on inlet port and with sockets of the type with pulse output on the Joint should be used with bracket contrast , supplied, resting on a fixed point to prevent rotation vacuum To right and left brac

More details

100 Items

1 690,94 €

More info

Tool that multiplies the value of tightening or loosening set on the torque wrench Useful to greatly reduce the effort of the operator and the - Sizes of lever It takes with the aid of a torque wrench on inlet port and with sockets of the type with pulse output on the Joint should be used with bracket contrast , supplied, resting on a fixed point to prevent rotation vacuum To right and left bracket With contrast angle Featuring device "no return" (excluding sizes 800 and 1200) to avoid the loss of stroke and the return of the multiplier violent towards the operator Tolerance ± 5% With internal safety gear to protect the unit in case of overload Sets of bracket contrast and safety gear parts IMPORTANT: NOT PERMITTED the use of different gear, Asseach gear is SPAN for its multiplier Moment maximum torque 800 Nm * Inlet 1/2" Outlet Joint 3/4" multiplication ratio 1 / 3.5 Ø A 65 mm Height 105 mm Height with bracket B C D Size 132 mm 130 mm - Weight 1.3 kg Comes the case . of synthetic resin
